Raw material: cement powder
Angle: 45°
Length: 2.8-3m long
Capacity:60t / h
Customer issues:
1. What is the common using conveyor for cement powder?

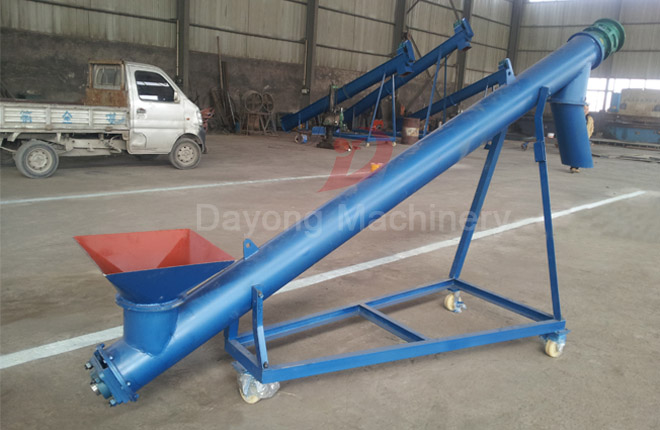

On the construction sites, customers are increasingly inclined to large angle tubular screw conveyor for the machine can be moved easily, and very suitable for mobile operations, such as concrete mixing station, warehousing and transport of bulk materials and other occasions.
2. Why use a tubular screw conveyor?
Tubular screw conveyor has its features:
By using this kind of machine, during the conveying, cement is not easily to fly, so it will reduce the waste, and the pollution of the environment.
3.How could we change the location of the machine very easily?
We could install the all-direction casters, which is very simple to move. It is convenient especially for bulk material loading operations.
4. What model we could use based on our capacity and site conditions?
LSY-400 diameter screw conveyor is more suitable.
Parameter:
Model |
LSY-400 |
||
Metric diameter of screw (mm) |
362 |
||
Rotary speed of main axis (r/min) |
170 |
||
Diameter of main case(mm) |
402 |
||
Max capacity (t/h) |
120 |
||
Max Length of conveying length L (m) |
25 |
||
Working angle (degree) |
0~90 |
||
Motor |
model |
L≤7M |
Y160M-4 |
Power (kw) |
11 |
||
model |
L≥7M |
Y160L-4 |
|
Power ( kw) |
15 |
